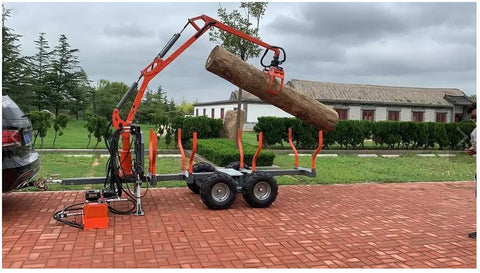

Professional Self Contained ATV Hydraulic Timer Log Crane + Logging Trailer KOHLER Engine

  • $ 6,995.00


Professional Self Contained ATV Hydraulic Timer Log Crane + Logging Trailer KOHLER 6.5HP Engine

*** IN STOCK.  AVAILABLE FOR PICKUP IN SAN MARCOS, CA WAREHOUSE.  CONTACT US TO SCHEDULE A PICKUP TIME.  LOCAL DELIVERY IS AVAILABLE AS WELL.

ENTIRE PACKAGE WITH CRANE + TRAILER @ $6,995.  INCLUDES KOHLER ENGINE UPGRADE.


Model WPTTC34 w/ Kohler SH265 6.5HP Quiet Engine
Engine Manual: http://resources.kohler.com/power/kohler/enginesUS/pdf/18_590_21_EN.pdf
Max reach 11.15' Feet
Max Load Capacity: 2.5 Ton
Lifting capacity @ 11.15' Ft 440lb
Lifting capacity @ 6.56' Ft 1100lb
Turning radius of crane 360°
Number of swing cylinder 2pcs
Max. open & area of wood grapple 700mm/0.08 m2
Max. load of hydraulic rotator 1 ton(10KN)
Hydraulic rotator turning radius unlimited
Working pressure 16 Mpa
Control valve 7 sets
Power Unit Kohler 6.5HP engine
Max. load 3,307 lbs
Total length 127" Inches
Width with wheels 57" Inches
Height 63" Inches
Height of front plate 43.3" x 27.5"
No. of “S” 2sets(Optional 3sets)
Length of loading area 83.5" - 139"
Loading area volume 1.6--3m3
Min. ground clearance 8"
Wheel Standard 22x11-10 (Optional 25X10-12)
Color: Orange / Black
